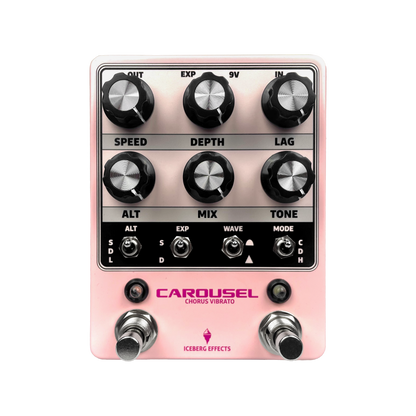

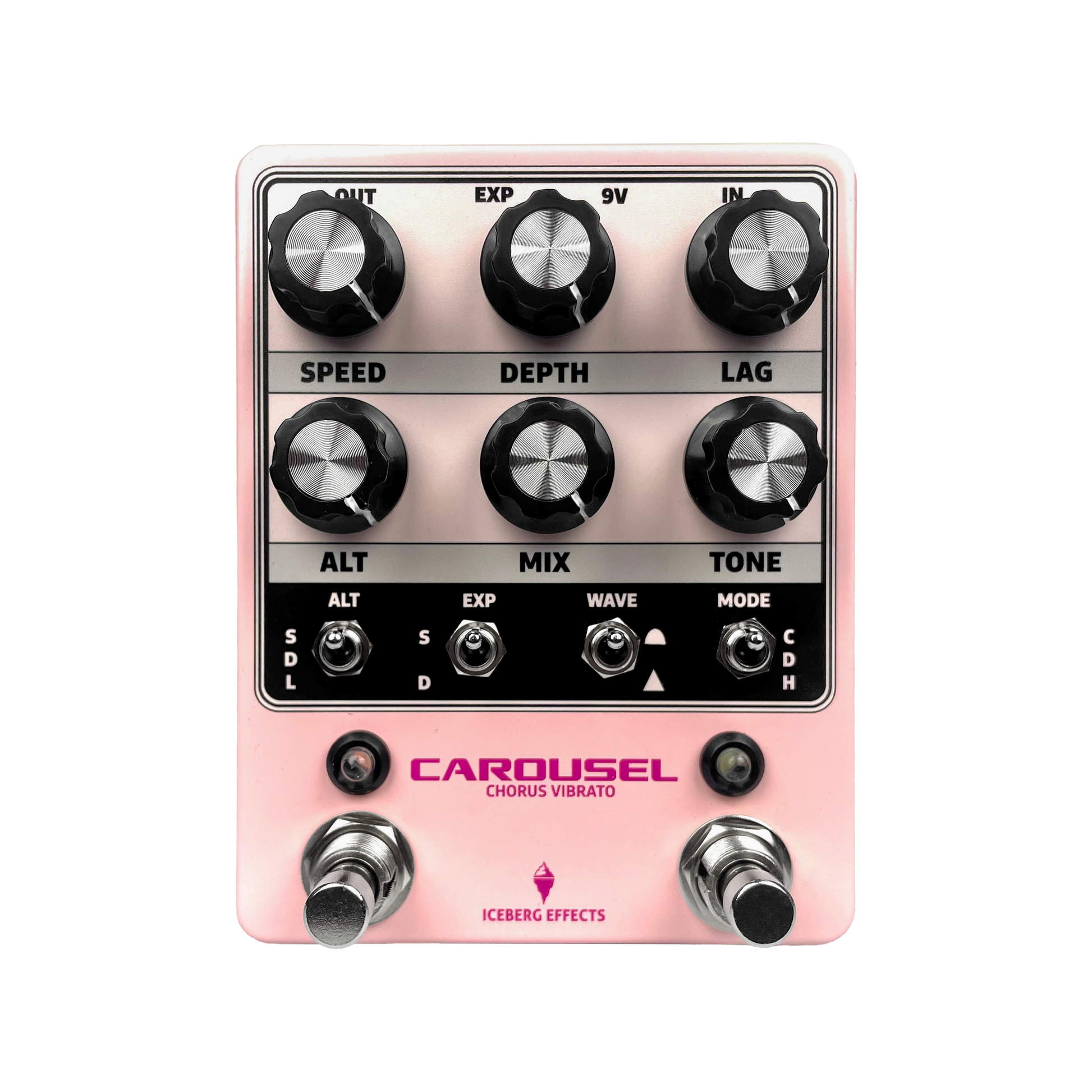

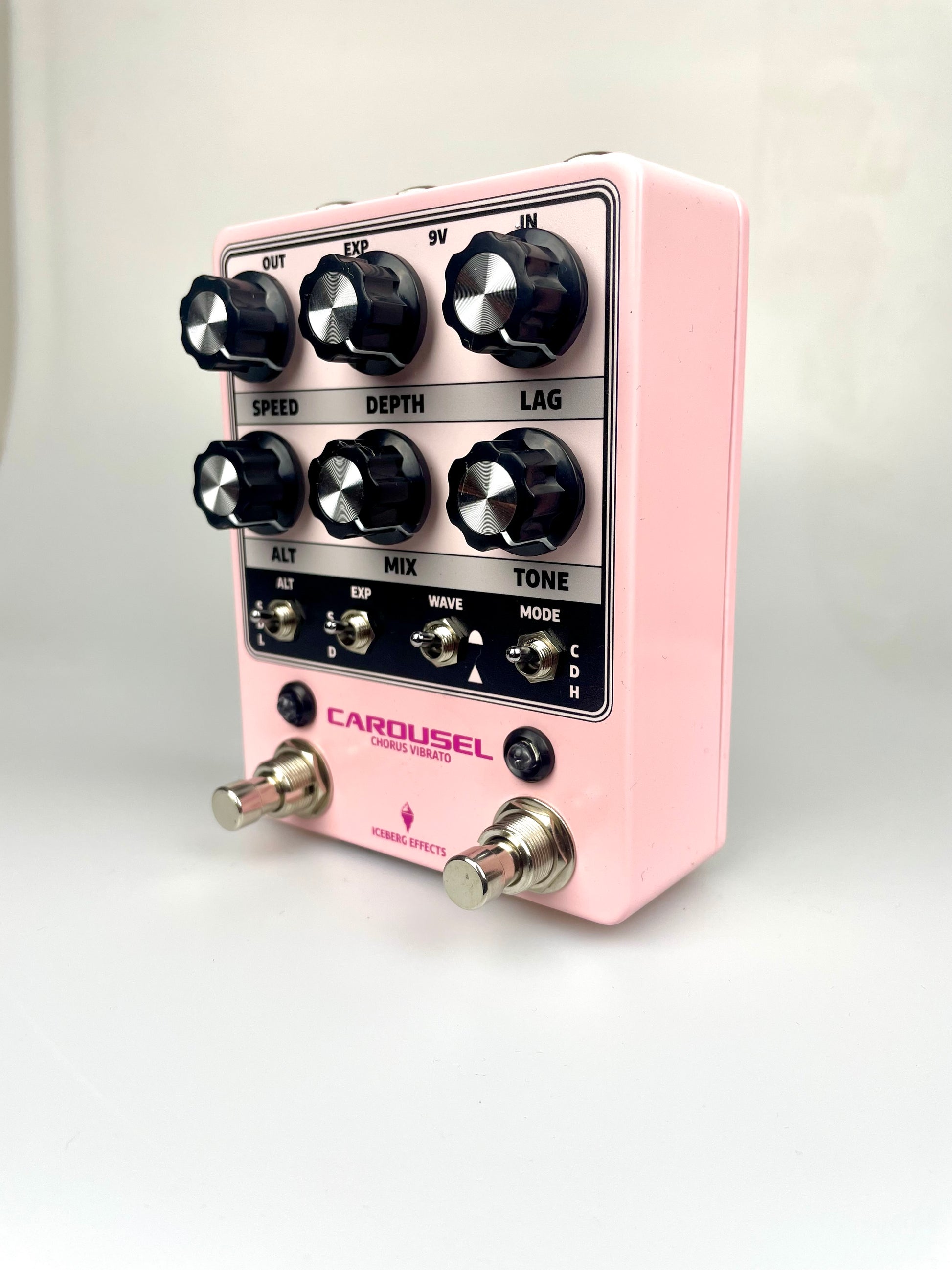

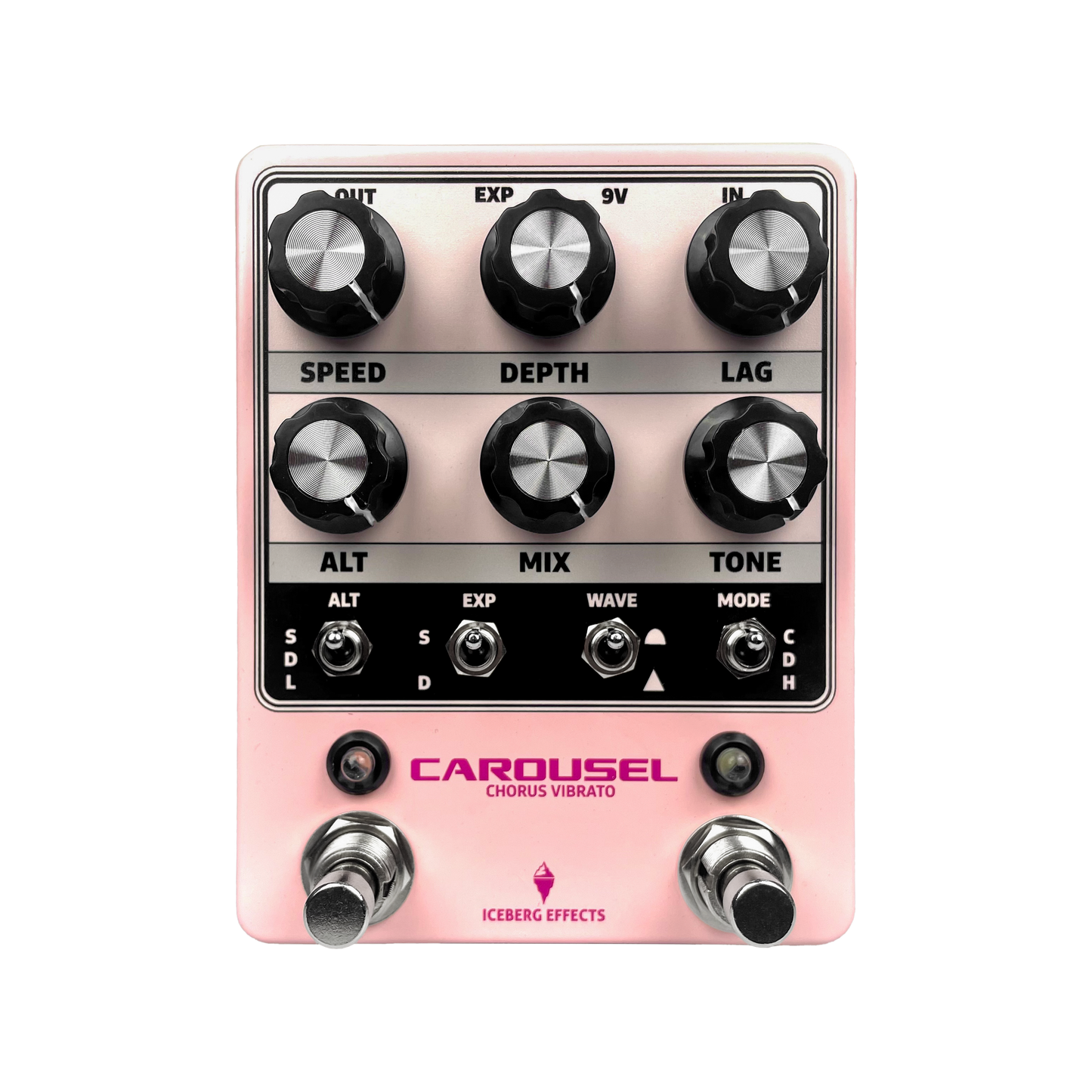

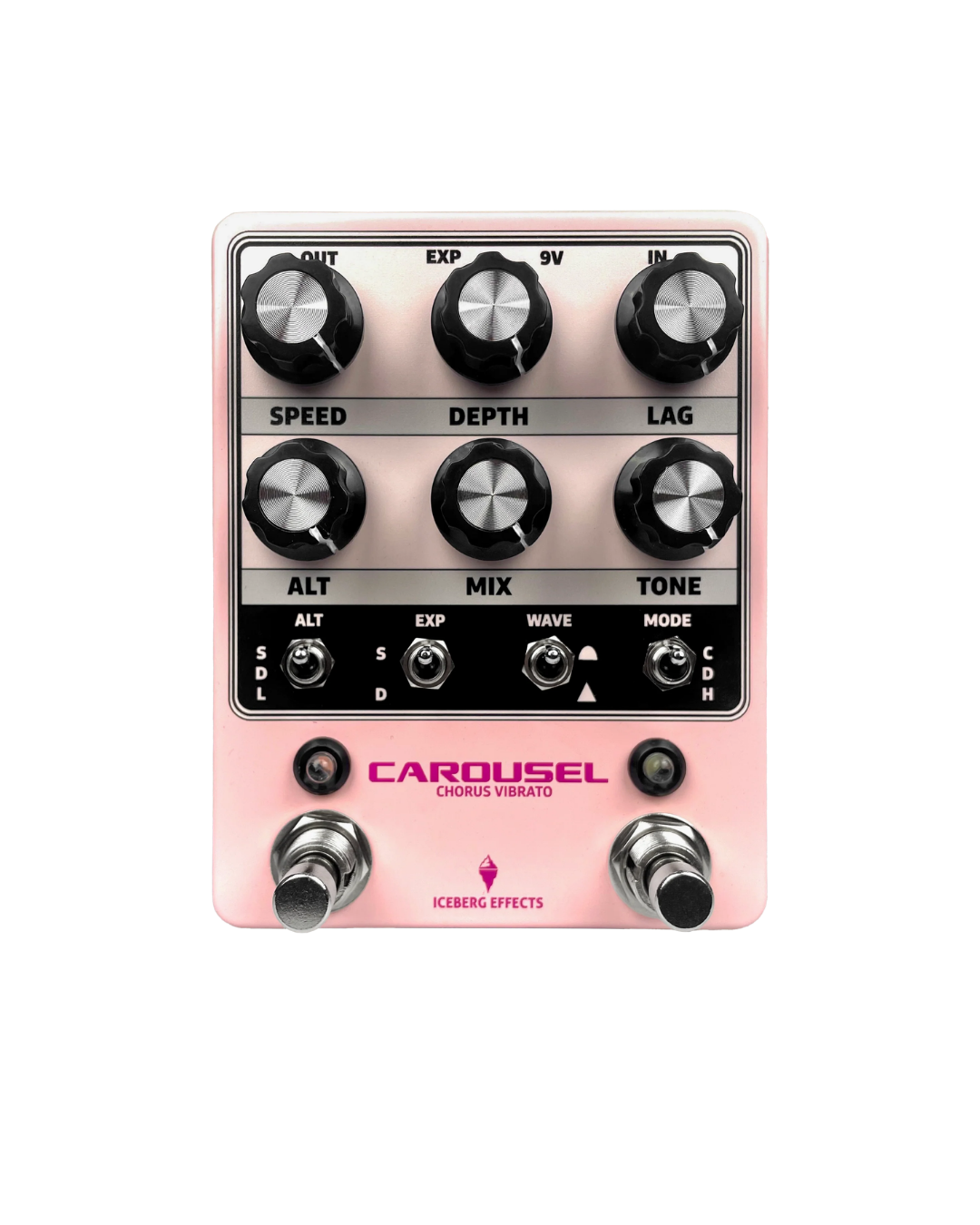

Specifications:
- Three Chorus modes
- Classic (C): Chorus sounds based on the classic bucket bridage chips.
- Dimension (D): Based on the Boss Dimension-C. Two chorus lines that are 180 degrees out of phase to each other, creating a 'motionless' chorus effect.
- Harmonic (H): One chorus line that operates on bass frequencies and second chorus line that only affects treble frequencies. The chorus lines are 90 degrees out of phase with each other.
- Two modulation waveforms
- Sine
- Triangle
- SPEED sets the rate of the modulation.
- DEPTH sets the intensity of the modulation.
- LAG sets the delay time of the chorus. Low LAG settings results in flanger-like sounds.
- MIX controls the blend between the dry unaffected signal and the modulated chorus signal. Turn the MIX knob fully clockwise for Vibrato.
- Tone controls the amount of treble frequencies in the modulated signal.
- Expression pedal input for controlling SPEED or DEPTH (can be set using EXP toggle switch)
- Relay-based true bypass with momentary hold function. External bypass port allows connecting the footswitches of different Iceberg Effects pedals together
- Left footswitch overwrites the SPEED, Depth or LAG knob (depending on the position of the ALT toggle switch) with the level set by the ALT knob. Hold the left footswitch to momentarily engage/disengage the ALT setting or tap it for latching use.
- Top mounted jacks.
- 1590BB2 enclosure 120 x 94 x 39 mm.
- Center negative power supply.
- Current draw 100 mA.
Made in The Netherlands
