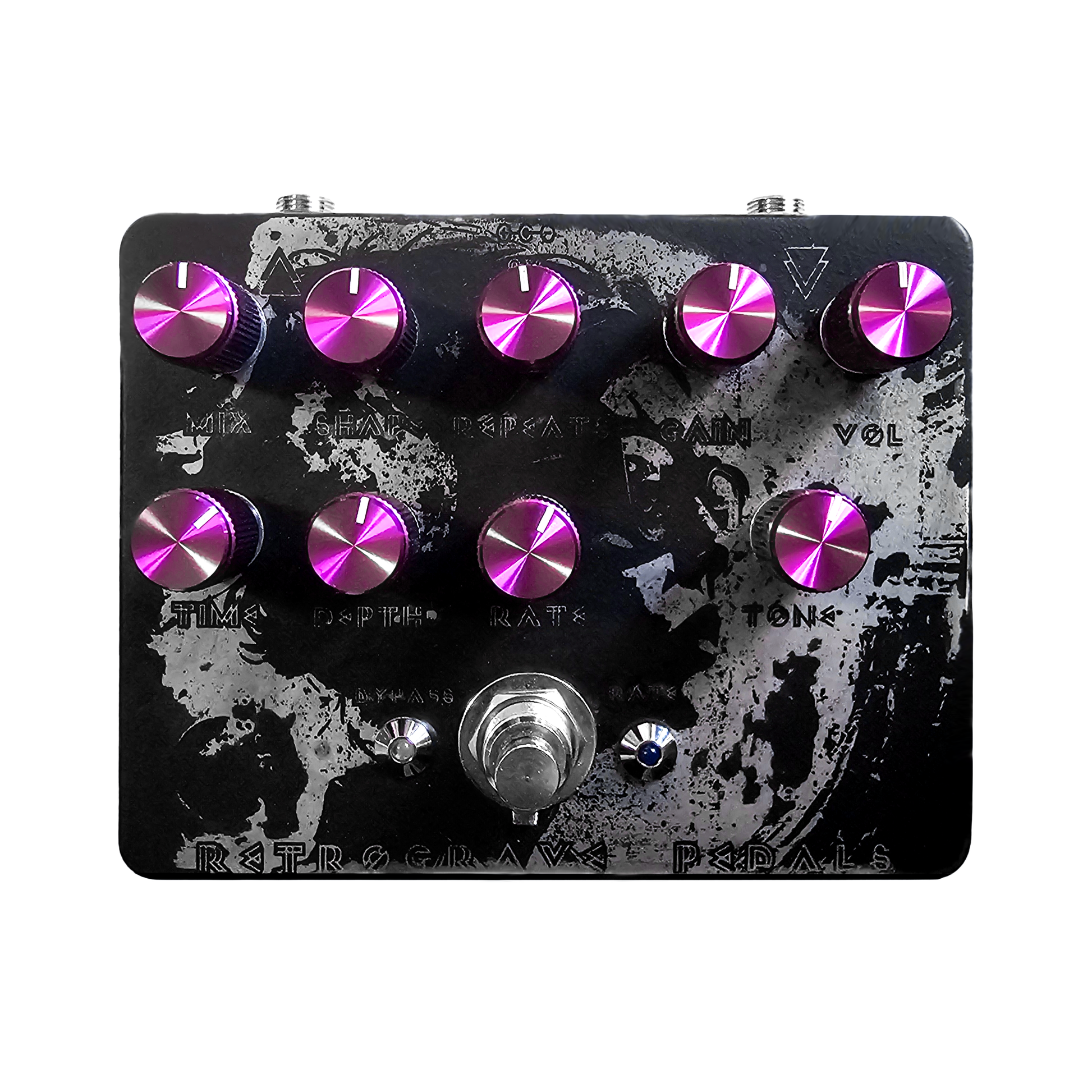

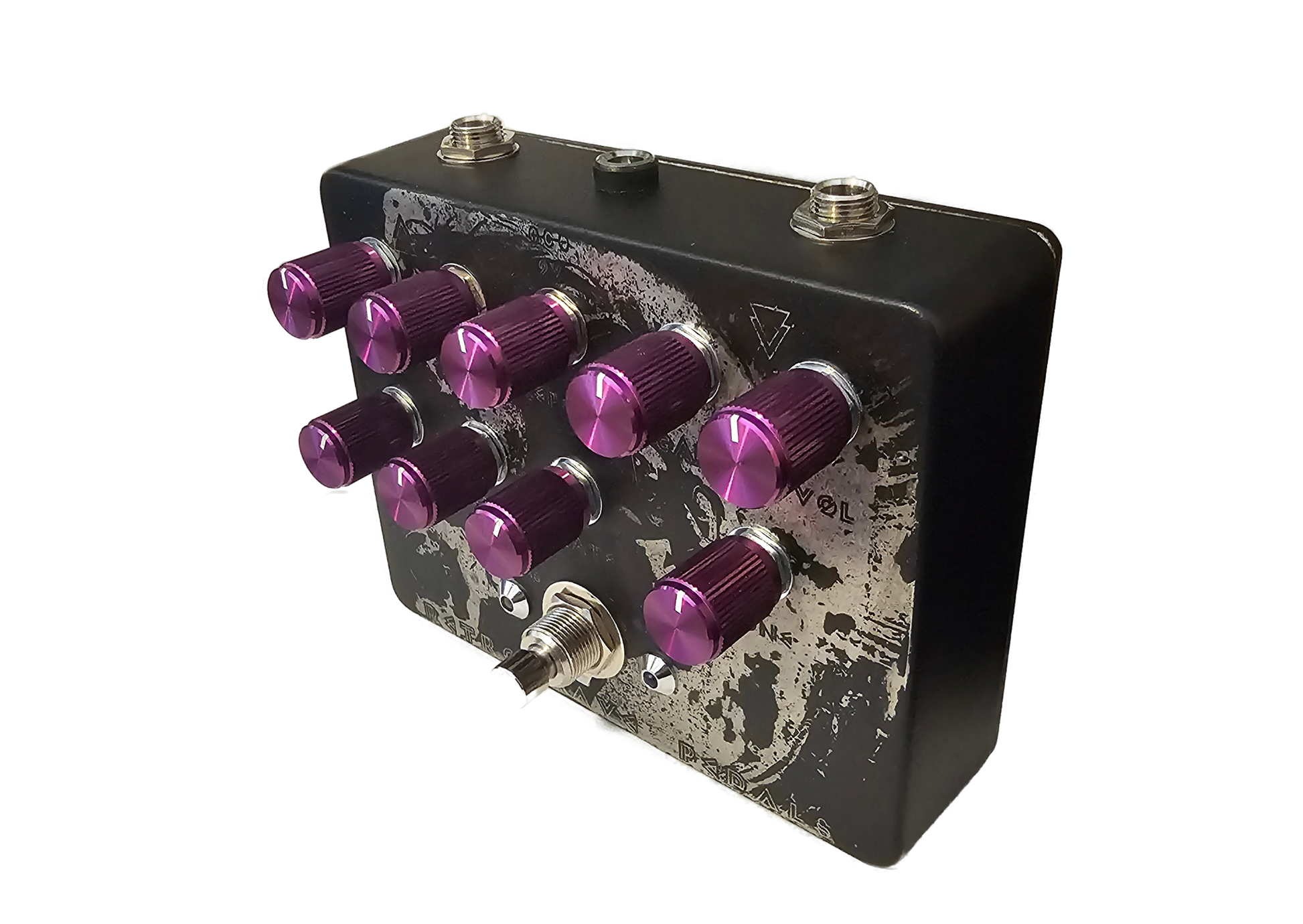

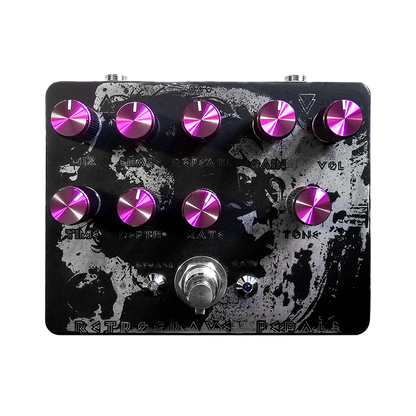

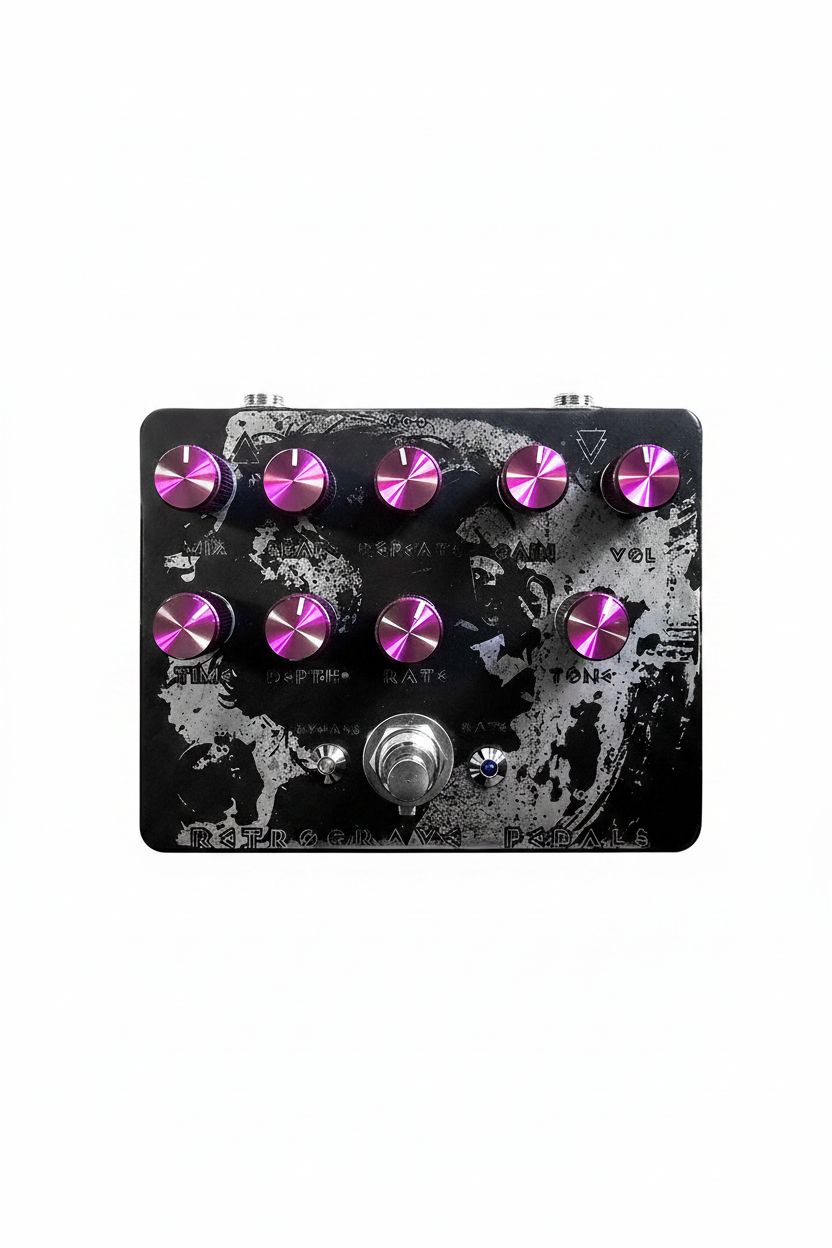

The Void Gazer

A delayed fuzz filled with the sounds of The Void. The signal is first run through a delay masterminded by a PT2399 chip to create weird lo-fi delay lines that feed into a 4 transistor (2n3904) fuzz with a monolithic amount of gain on tap.

Mix in your preferred amount of fuzz and delay with the controls from subtle to absolutely crushing noisy wall of sound (that's where the fun sounds are). Perfect for those who enjoy gazing at their shoes or finding out if it dooms.

TIME- Turning this control counter clockwise creates a short slap back type delay. When turned clockwise, the delay becomes a longer haunting ambient echo.

REPEATS- This allows the delay signal to regenerate on top of itself. Turning this control clockwise will start to increase the repeating signal until it begins to self-oscillate. Turn it fully clockwise to make the signal repeat infinitely. Expect noise to increase as repeats increase.

MIX- This controls the amount of delay effect mixed into the output signal, turn clockwise for a full wet signal. Turn counter-clockwise to take the delay effect out of the output signal entirely.

DEPTH- This controls the amount of LFO modulation added into the wet delay signal.

SHAPE- Effects the waveform shape of the LFO modulation.

RATE- This controls the speed of the modulation effect. Turn clockwise for a faster rate of speed, counter clockwise for a slower rate. RATE LED will indicate the current speed.

TONE- Controls the EQ output of the pedal.

VOL- Controls the master volume output of the pedal.

GAIN- Controls the amount of gain of the fuzz effect. As you increase the gain, expect more noise!

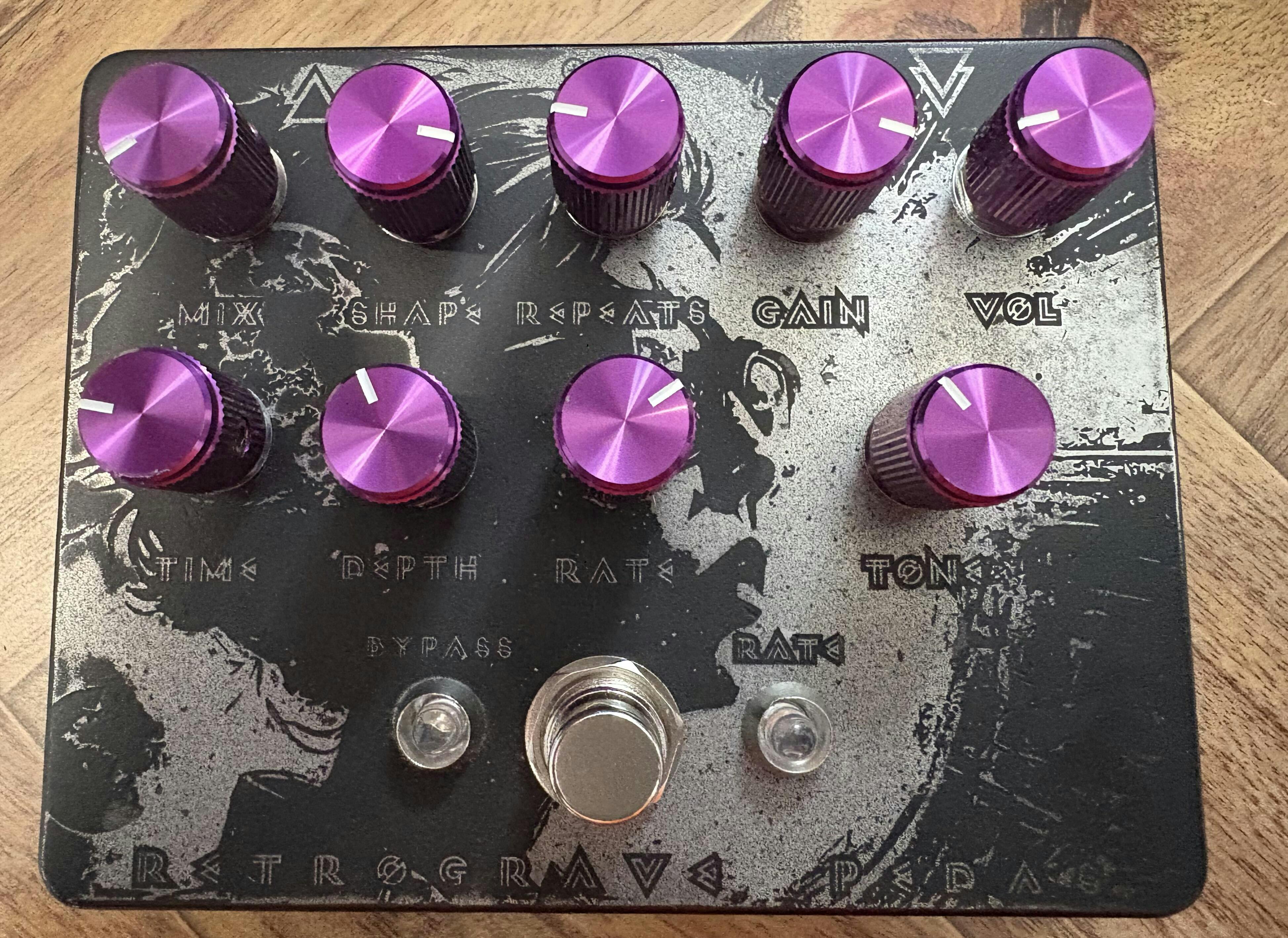

Each pedal is individually acid etched so expect slight visual variations.

Only use with a 9V dc negative center power supply.
